 Installation method

Leading a new architectural culture with technological innovation
4th-generation weldless field installation of fire sprinkler piping
  • Easily accommodates changes in the height of sprinkler head fittings
  • Easy to modify and replace pipes with grooved connections
  • Unlike pipe threading, grooving changes pipe thickness less

Comparing Branch Pipe Groove Connection Methods

Other companies

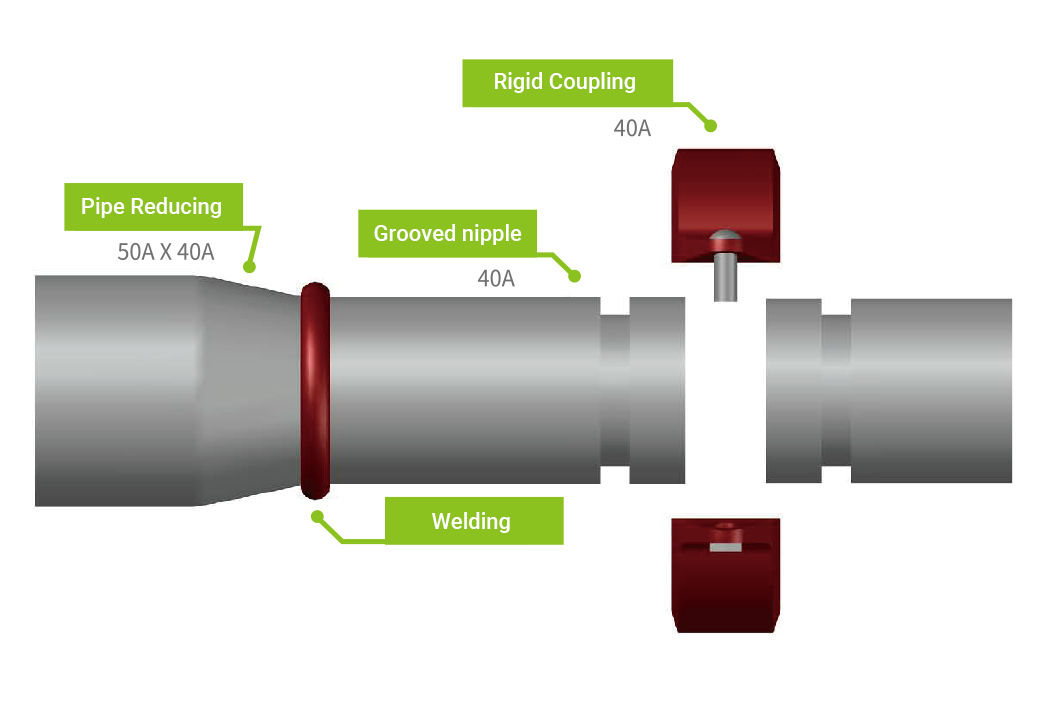

Pipe Reducing + Grooved Nipple welding + Coupling

Example) Material cost + processing cost 3,960 + 10,950=14,910won

KAI LABS CO., LTD.

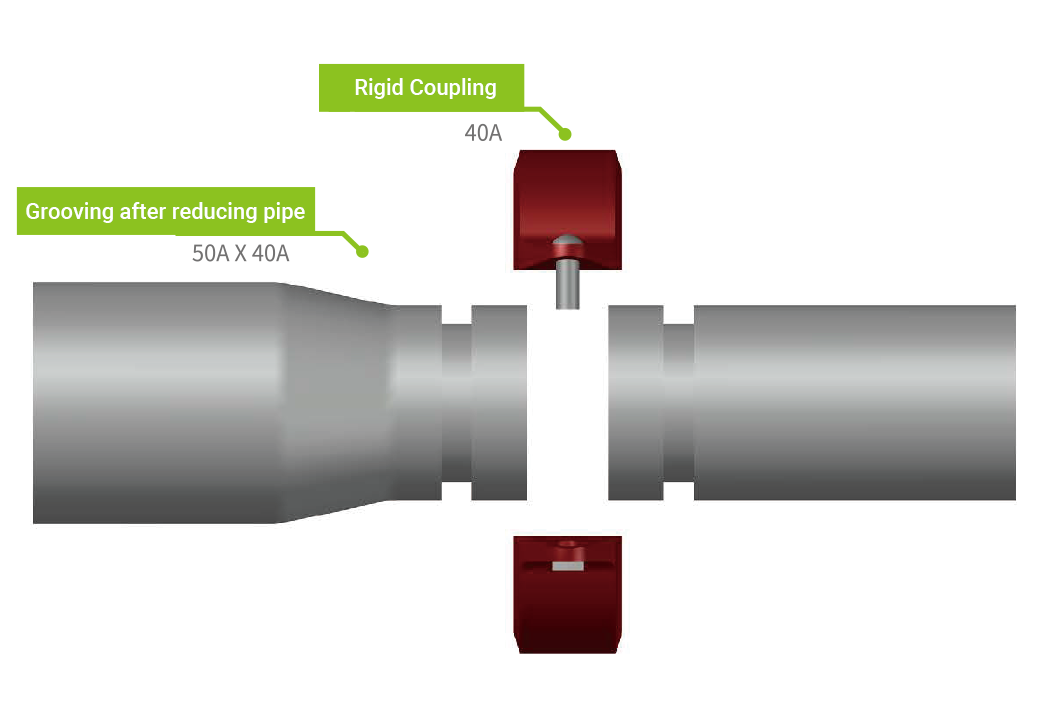

Pipe Reducing + Grooving + Coupling

Example) Material cost + processing cost 3,960 + 7,750 = 11,710won

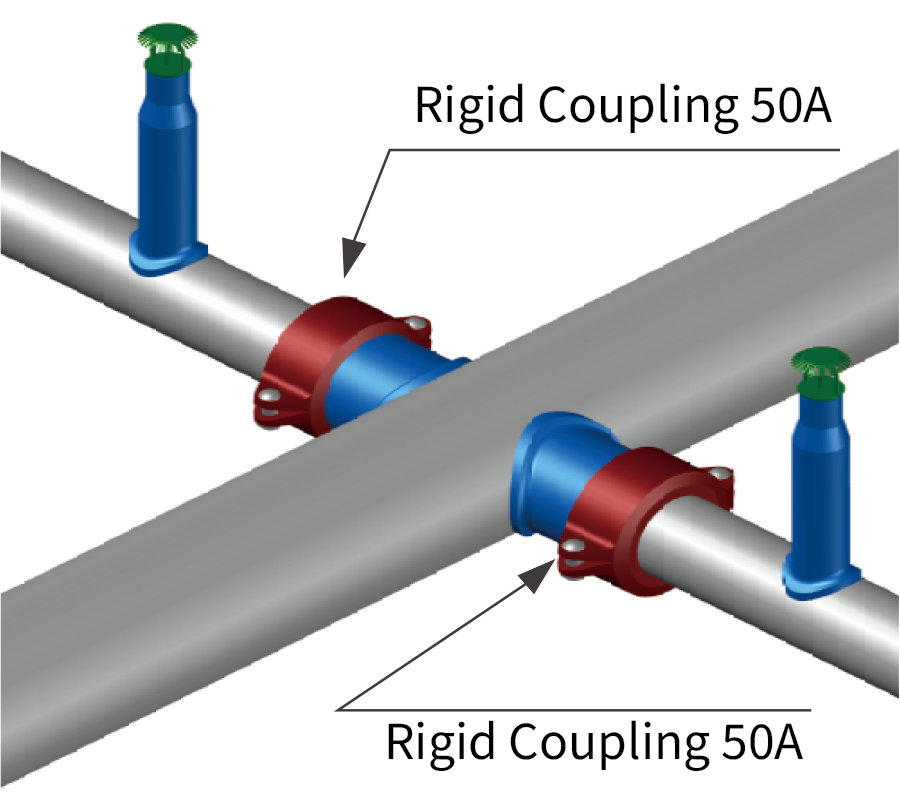

Lateral Branching Method

The only construction method in Korea that allows side branching on the same circumference

Lateral Branching Method

① Other fire sprinkler pipe manufacturing method (Extruded tee type, side branch)

② (Extruded tee type, upper part / Welded tee “squared c” cross pipe)

③ KAI LABS’s fire sprinkler pipe manufacturing method (Outlet - Non-expansion type)

Benefits of KAI LABS’s Lateral Branching Outlet Method

  • Same circumference side branch reduces weld bonds compared to using 2 elbows
  • Reduced welding cost and better protection against leakage compared to 2 elbows
  • Aesthetically pleasing with an organized form for exposed piping
